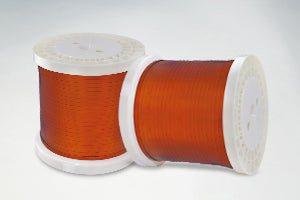

Enameled rectangular copper wire Q(ZY/XY)(EI/AIWB/200)

The enameled copper flat wire produced by our company can be used for winding coils of new energy vehicle drive motors, transformers, motors, generators and various electrical devices.

Company phone: 0769-83775310 83775312

Enameled Rectangular Copper Wire Q(ZY/XY)(EI/AIWB/200) Performance Advantages

Excellent conductivity and thermal stability
Scratch resistance
Solvent resistance
Winding resistance has good heat dissipation performance
High magnetic field efficiency

Enameled rectangular copper wire Q (ZY/XY) (EI/AIWB/200) performance parameters

代号 Code	等级 Level	名称 Name	型号 Model	规格范围 Specifications Range	适用标准 Standards
B	130	130级聚酯漆包铜扁线	QZ B-x/130	1.5mm²-15mm² 1.2:1≤宽窄比≤8:1	IEC 60317 GB/T 7095.7 JIS *
F	155	155级聚酯漆包铜扁线	QZ B-x/155	1.5mm²-15mm² 1.2:1≤宽窄比≤8:1	IEC 60317-16 GB/T 7095.3 JIS *
H	180	180级聚酯亚胺漆包铜扁线	QZYB-x/180	1.5mm²-15mm² 1.2:1≤宽窄比≤8:1	IEC 60317-28 GB/T 7095.4 JIS *
C	200/220	200级聚酯亚胺/聚酰胺酰亚胺复合漆包铜扁线 220级聚酰胺酰亚胺漆包铜扁线	Q(ZY/XY)B-x/200 QXYB-X/200	1.5mm²-15mm² 1.2:1≤宽窄比≤8:1	IEC 60317-29 GB/T 7095.6 NEMA MW36-C JIS *
C	240	240级聚酰亚胺漆包铜扁线	QYB-x/240	1.5mm²-15mm² 1.2:1≤宽窄比≤8:1	IEC 60317-47 GB/T 7095.5 NEMA MW20-C JIS *
