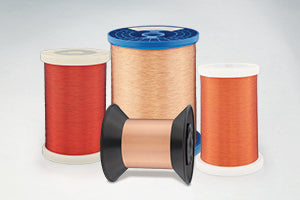

Nylon composite enameled wire QA/N (UEW/N)

The nylon composite enameled wire produced by our company is suitable for relays, micromotors, transformers, instruments and meters, various electronic components and winding coils.

Company phone: 0769-83775310 83775312

Nylon composite enameled wire QA/N (UEW/N) performance advantages

  • Can be directly soldered, easy to dye
  • Low dielectric loss at high frequencies and good salt water pinhole performance
  • Small surface friction coefficient and good wear resistance
  • Good bending performance

Nylon composite enameled wire QA/N (UEW/N) performance parameters

Thermal level code Thermal level Specification range mm Specification range AWG Applicable Standard
IEC GB/T NEWA JIS
B 130 0.04-1.6 14#-44#* 60317-19 6109.9 MW28-CC3202
F 155 0.04-1.6 14#-44#* 60317-21 6109.11 MW80-C C3202
H 180 0.04-1.6 14#-44#* 60317-51 6109.23 MW83-C C3202
